Advanced thermoforming production line for Lids,Trays and bowls.
Advanced thermoforming production line for cups

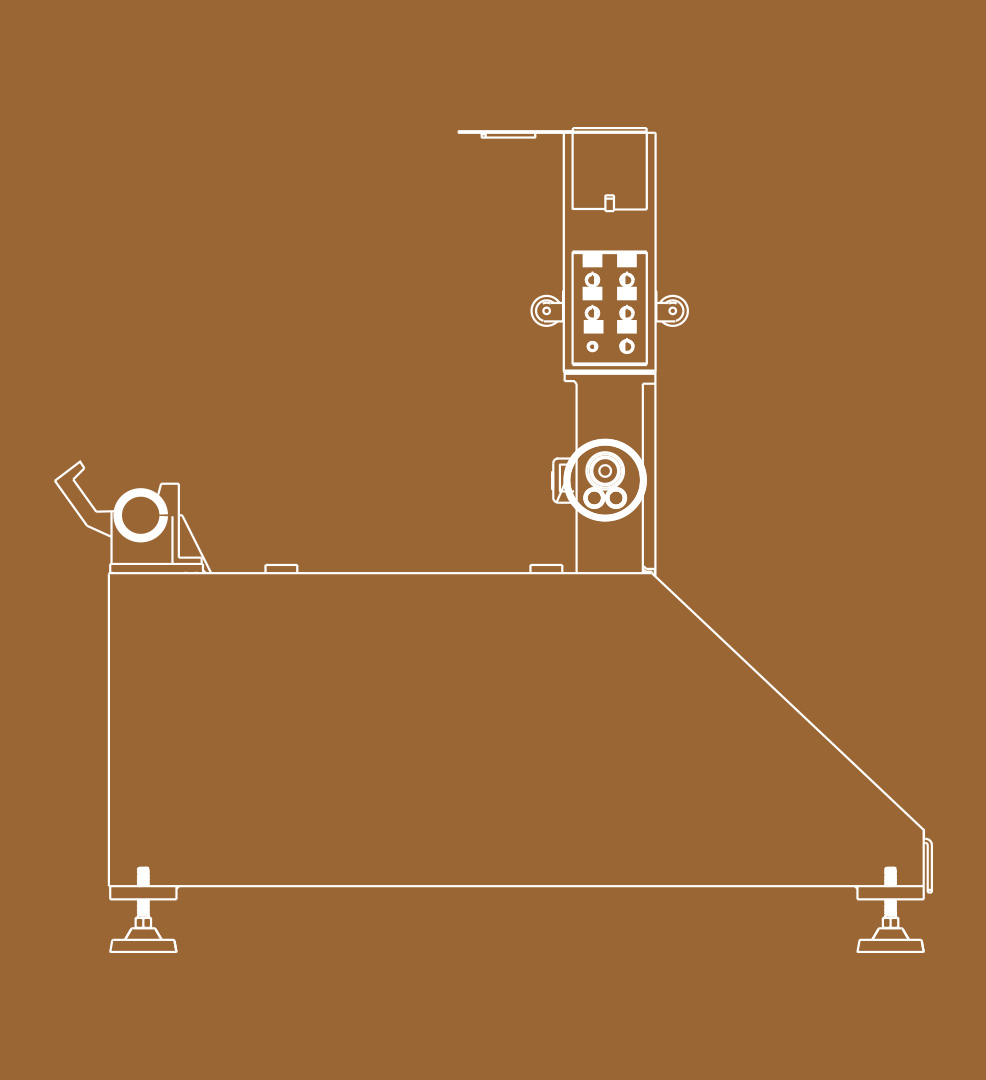

QAU-100 Roll
Unwind Stand
• Infeed width adjustable : 600 mm ~ 830 mm
• Max. loading weight : 1,200 kgs
• Max. un-loading diameter : 1,200 mm
• Suitable working thickness : 0.2 mm ~ 2.0 mm
• Un-loading preparation
• Photoelectric sensor
• Easy break system

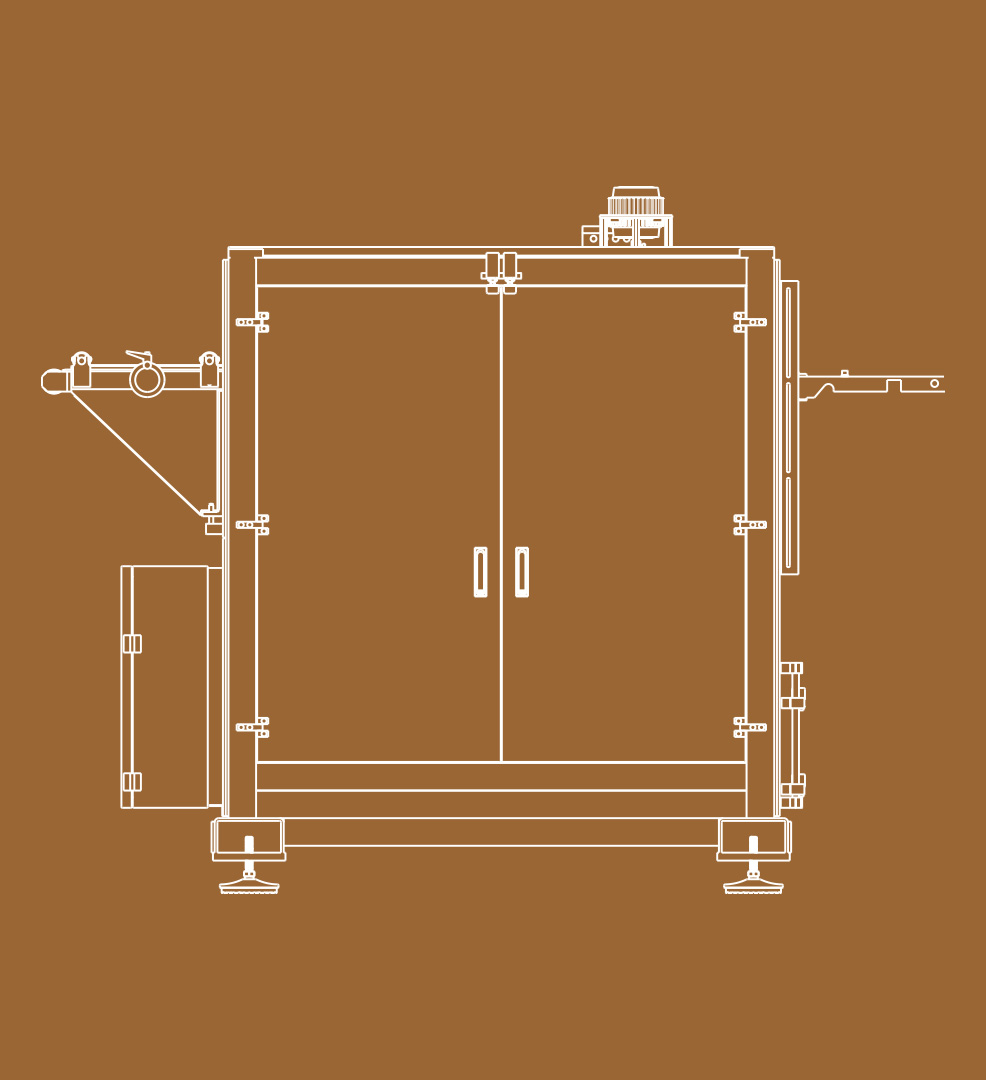

PHA-090 Pre-Heating
Machine
• Max. material infeed width: 850mm
• Max. material thickness: 1.8mm
• Max. roller heating temperature: 140°C
• Material contacted length with roller approx. :2,944mm
• Roller diameter: 600mm
• Power consumption: 43kW
• Machine weight with switch cabinet: 2,400kgs
• Floor Space Requirement: 2,900 mm x 1,600 mm
• Machine Height: 2,050 mm
Your
Machine
Your ILLIG,KIEFEL,GABLER and WM's Forming station,Steel rule Punch station and Stacking station.

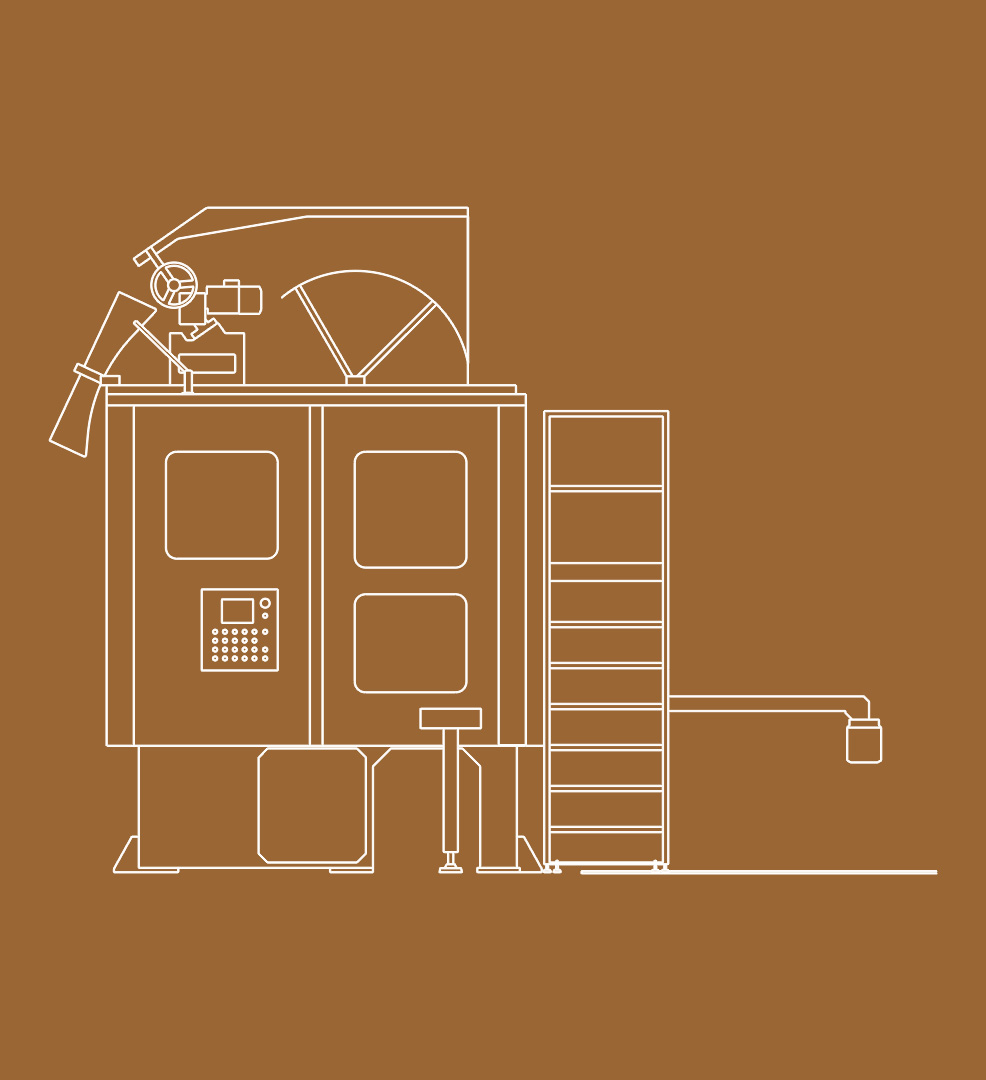

PPM-020
Punch Machine
• Max. Trim Force: 200 kN
• Stroke: 160 mm
• Max. mold closing height: 268 mm ~ 285 mm
• Max. Sheet Width: 830 mm
• Dry cycle Speed: 130 spm
• Power supply: 14.875 kw
• Machine weight: App. 7,500 kgs
• Floor Space Requirement: 4,800 mm x 5,000 mm
• Machine Height: 3,800 mm
QAU-100 Roll
Unwind Stand
• Infeed width adjustable : 600 mm ~ 830 mm
• Max. loading weight : 1,200 kgs
• Max. un-loading diameter : 1,200 mm
• Suitable working thickness : 0.2 mm ~ 2.0 mm
• Un-loading preparation
• Photoelectric sensor
• Easy break system
PHA-090 Pre-Heating
Machine
• Max. material infeed width: 850mm
• Max. material thickness: 1.8mm
• Max. roller heating temperature: 140°C
• Material contacted length with roller approx. :2,944mm
• Roller diameter: 600mm
• Power consumption: 43kW
• Machine weight with switch cabinet: 2,400kgs
• Floor Space Requirement: 2,900 mm x 1,600 mm
• Machine Height: 2,050 mm
Your
Machine
Your ILLIG,KIEFEL,GABLER and WM's cups thermoforming machine.

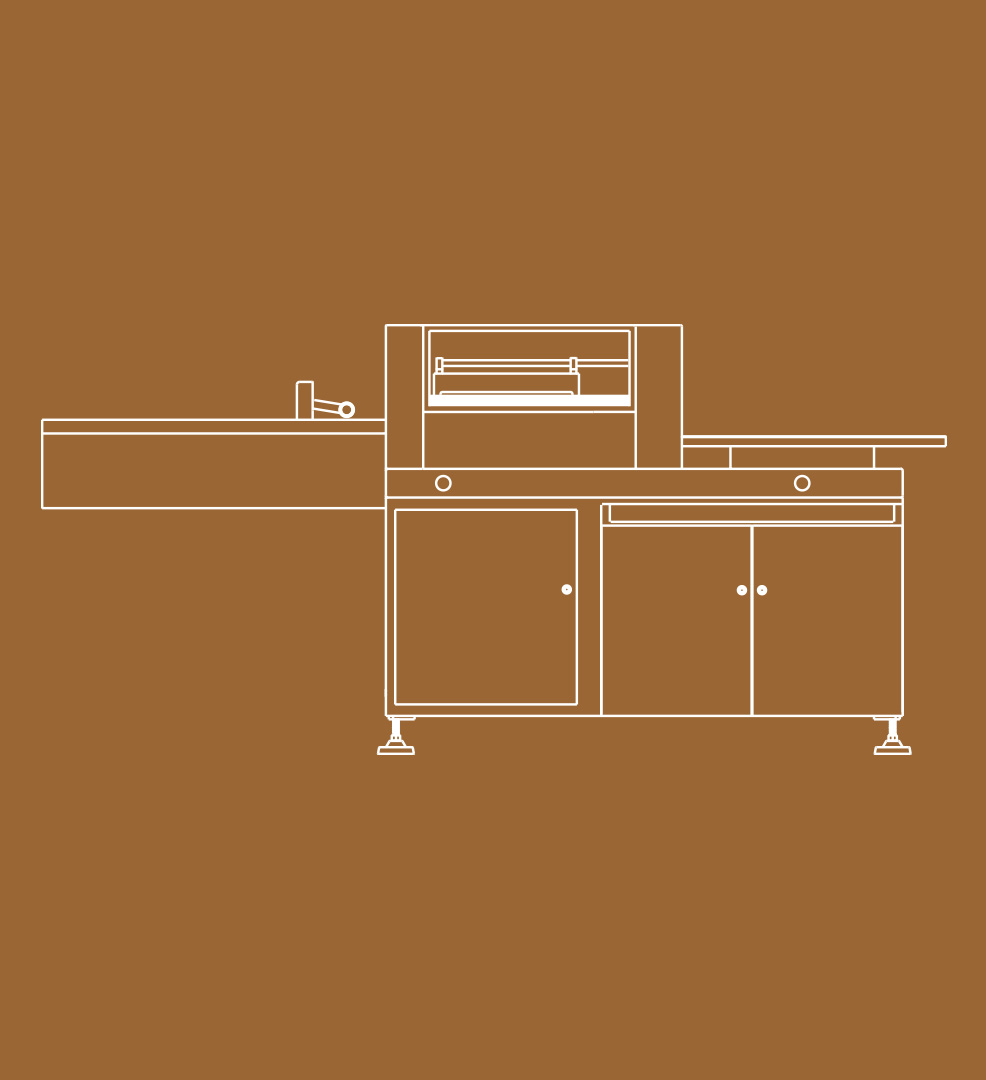

PCB-50
Rimming Machine
• Cup throughput: 730pcs/minmax
• Connected load rimming motor: 1.5kW
• Connected load transport rollers, rimming screw: 7.5kW
• Connected load heater element: 6kW
• Cup diametermax.: 125mm
• Cup diameter min.:70mm
• Machine length: 3150mm
• Machine width: 849.4mm
• Machine height: 1492mm
• Structural machine weight 700kg
